Click on the "General Information" button (top button above) for an overview and general information on this category of hearing aid.



Conversation Tubes

Vibratube

The American Earphone Company in New York manufactured this Vibratube.

This model is a rubber tube covered in black fabric ($5.00). They apparently also made a spiral metal tube model for $7.00.

This conversation tube dates from somewhere around 1920.





Click picture for larger view



Back Next


A picture of a second Vibratube in the museum. The tube of this Vibratube is 32½" long. The overall length including earpiece and bell is 39".




Click picture for larger view


Close-up of the Vibratube earpiece. The earpiece is 4½" long.




Click picture for larger view


Close-up of the Vibratube bell. The bell is 4½" long and is 1¾" in diameter.




Click picture for larger view


The Vibratube pulls apart into three pieces. This makes replacing any broken part very easy. Also, it makes it easy to adjust the earpiece or mouthpiece to point in any desired direction. The joins are simply a "press fit".

This tube is 36 inches long. The ear piece and bell are made of hard rubber.


Click picture for larger view



The Vibratube assembled and mostly unrolled to show its length.




Click picture for larger view



The attached tag states "The mouth piece should touch the lips of speaker for best results." They're not kidding. When I put my mouth to the mouthpiece and spoke in a soft voice, even with my severe loss, I could hear my voice wonderfully well.

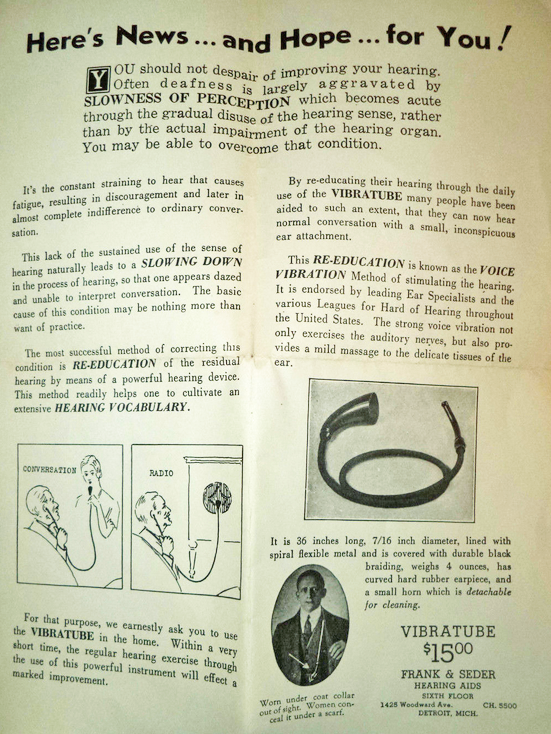

Here is a sales sheet for the Vibratube.






Click picture for larger view



(If a larger picture doesn't appear, you may have to turn your pop-up blocker off)
